There is a proven formula to make a dead blow hammer. The hammer should be dead (absorb recoil) but transfer maximum force. Not a lot of dead blow manufacturers know this formula. We’ve seen many cheats to get a hammer dead or a shortcut taken because the metal gets exposed too easily. Manufacturers are able to hide a lot of bad design under the polyurethane coating!
At Impact we’ve been refining this formula since 1997 and I can tell you, the earliest prototypes were disappointingly bad and we’ve learned how each aspect of the design works together to give you the best performance, longest life, and best feel to help you, the person on the tools, do your job more efficiently.

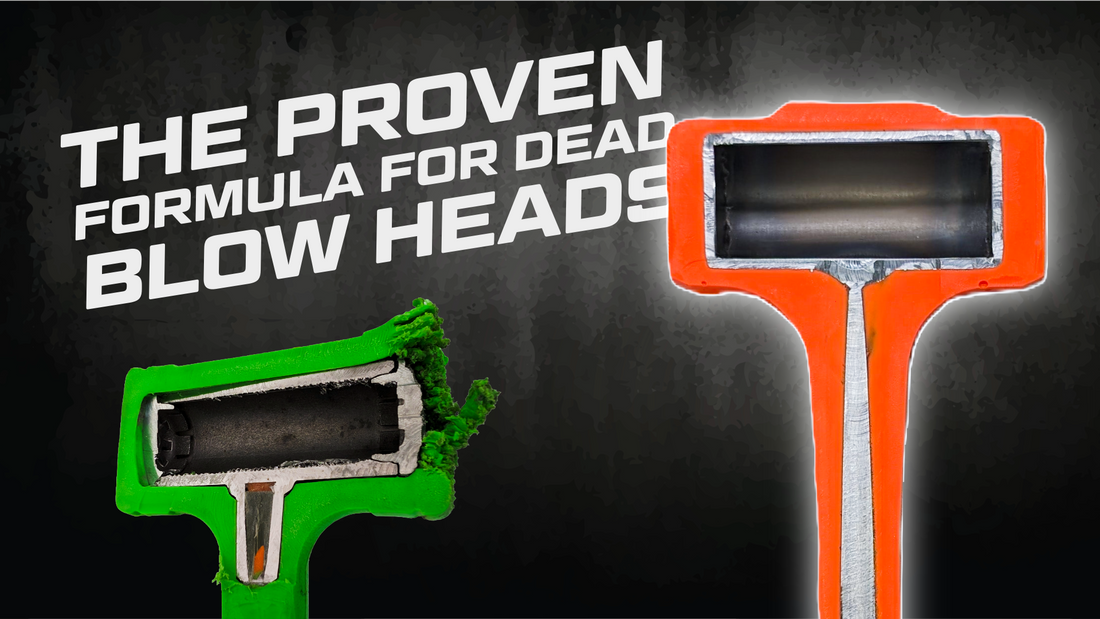

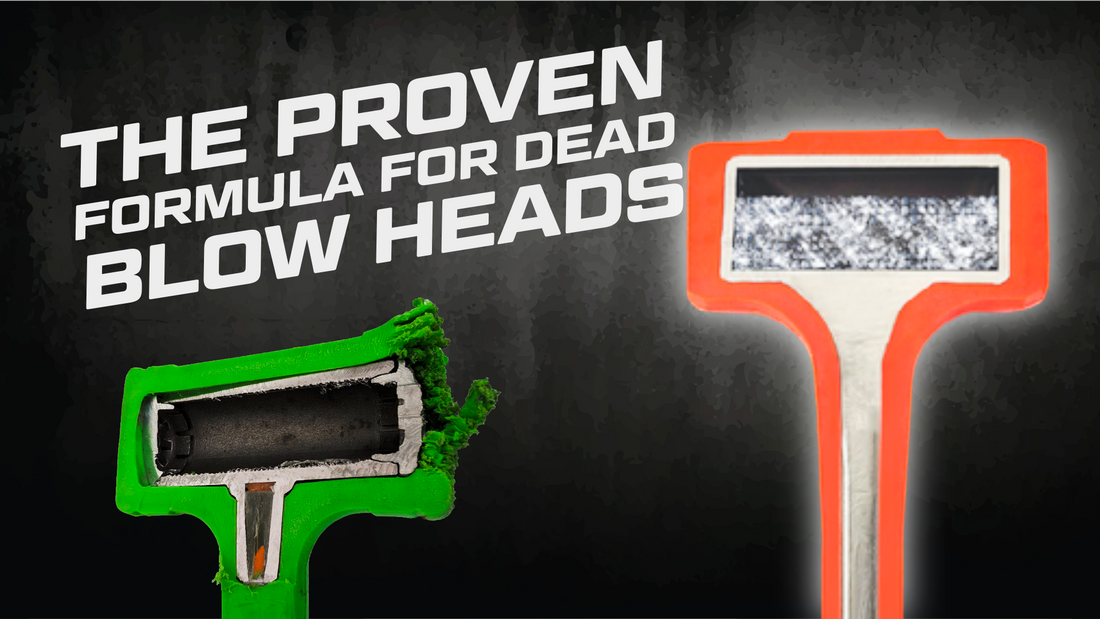

The Fundamentals of Dead-Blow Design
A high-performance dead-blow hammer requires:
- Durable polyurethane that resists cutting and wear
- Optimized face thickness to balance force transfer and impact protection
- A free-flowing internal cavity so the shot can move freely and absorb rebound
- Proper head volume to ensure enough mass is available to dampen vibration
- A fully sealed design to prevent shot from escaping and contaminating the workpiece or environment
Snap-on's redesigned hammer features a relatively small head for its weight, which limits internal shot volume and reduces its ability to absorb rebound. The thinner polyurethane face also increases the likelihood of cutting through to the internal structure, potentially damaging the workpiece. Their use of aluminum end caps appears to compensate for this, but since the caps rely on the outer poly for retention, durability can become a concern once the outer layer begins to wear.
Stanley/Mac Compo-Cast This design uses a large amount of polyurethane but has a very small internal cavity. The result is reduced force transfer—closer to a rubber mallet than a true dead-blow hammer. Additionally, the handle passes through the head, restricting internal shot movement and limiting rebound absorption.
Trusty Cook uses high-quality cast polyurethane and maintains good head volume. However, like other designs, the handle runs through the head, restricting shot movement and reducing effectiveness. Retention methods such as silicone sealing can also become a weak point over time.
Stanley Proto This design relies heavily on plastic construction. While it appears to have a larger cavity, internal shot volume is limited. Overall, the design prioritizes simplicity over performance. You really want to be careful with designs like this one as in any heavy industrial use there is a large potential for the plastic to break and shot leak out. This is not something you would want to use on a critical component like the inside of a CAT engine!
Performance Tool While widely distributed, this design suffers from thin polyurethane faces that cut easily. The internal cavity is adequate, but end caps are not securely retained once the outer layer begins to degrade. Internal construction choices also raise concerns about long-term durability. One fun note on this hammer, it actually uses a piece of rebar in the handle to help stop twisting.
The Impact Approach
Impact hammers are designed with performance as the priority:
- Large internal cavity relative to hammer size for maximum rebound absorption
- Completely free-flowing shot for effective energy transfer
- Fully welded, sealed head—eliminating any risk of shot leakage
-
Thicker hot-cast polyurethane faces for superior durability and workpiece protection
The result is a hammer that delivers more force, reduces operator fatigue, and stands up to demanding industrial use.
Not all dead-blow hammers are created equal. Many designs make trade-offs that limit performance, durability, or safety.
When you understand what’s happening inside the head, the differences become obvious.
